Model

B2

B3

B10

B15

Operating Environment

Indoor

Indoor

Indoor

Indoor

Pixel Pitch

H:2.84mm/V:5.62mm

H:3.91mm/V:7.82mm

10.42mm

15.62mm

LED Type

SMD2020

SMD1921

SMD2020

SMD1921

SMD1921

SMD1921

SMD2020

SMD1921

SMD2727

SMD3535

Module Size

500mm*125mm

500mm*125mm

500mm*125mm

500mm*125mm

Module Resolution

176dots*22dots

128dots*16dots

48dots*12dots

32dots*8dots

Panel Size

1000mm*500mm

1000mm*500mm

1000mm*500mm

1000mm*500mm

Panel Resolution

352*88dots

256*64dots

96*48dots

64*32dots

Panel Weight

5kg

5kg

5kg

5kg

Pixel Density

61,952dots/m²

32,768dots/m²

9,216dots/m²

4,096dots/m²

Scan Mode

1/11

1/16

1/8

1/2

Static

Brightness

1,500nits

5,000nits

1,000nits

2,500nits

4,000nits

5,000nits

1,200nits

5,000nits

3,500nits

5,000nits

Refresh Rate

≥1,920Hz

≥1,920Hz

≥1,920Hz

≥1,920Hz

Gray Scale

16bit

16bit

16bit

16bit

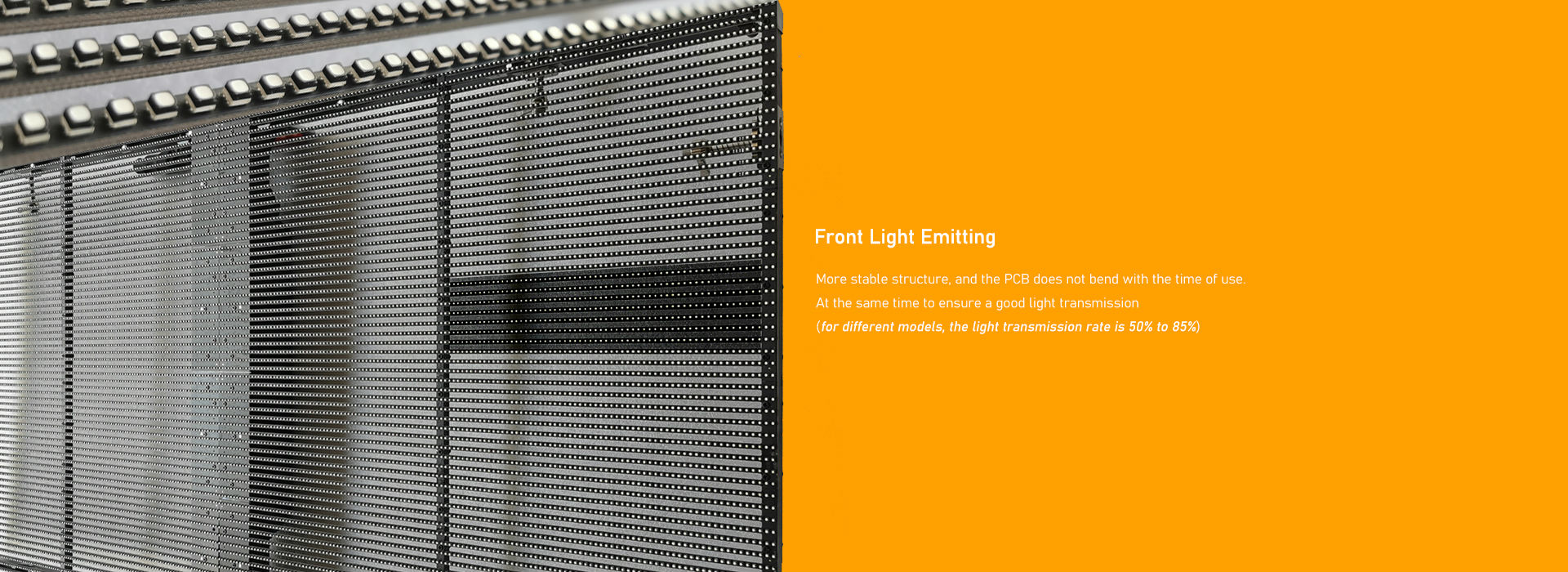

Transparency Rate

50%

75%

80%

85%

Max. Power Consumption

800W/m²

800W/m²

400W/m²

400W/m²

600W/m²

800W/m²

800W/m²

800W/m²

800W/m²

800W/m²

Ave. Power Consumption

220W/m²

220W/m²

110W/m²

110W/m²

180W/m²

220W/m²

220W/m²

220W/m²

220W/m²

220W/m²

Power Input

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

VIewing Angle

H:140°/V:140°

H:140°/V:140°

H:140°/V:140°

H:140°/V:140°

Operating Temperature

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

Operating Humidity

10%～90%

10%～90%

10%～90%

10%～90%

Protection Grade

IP33

IP33

IP33

IP33

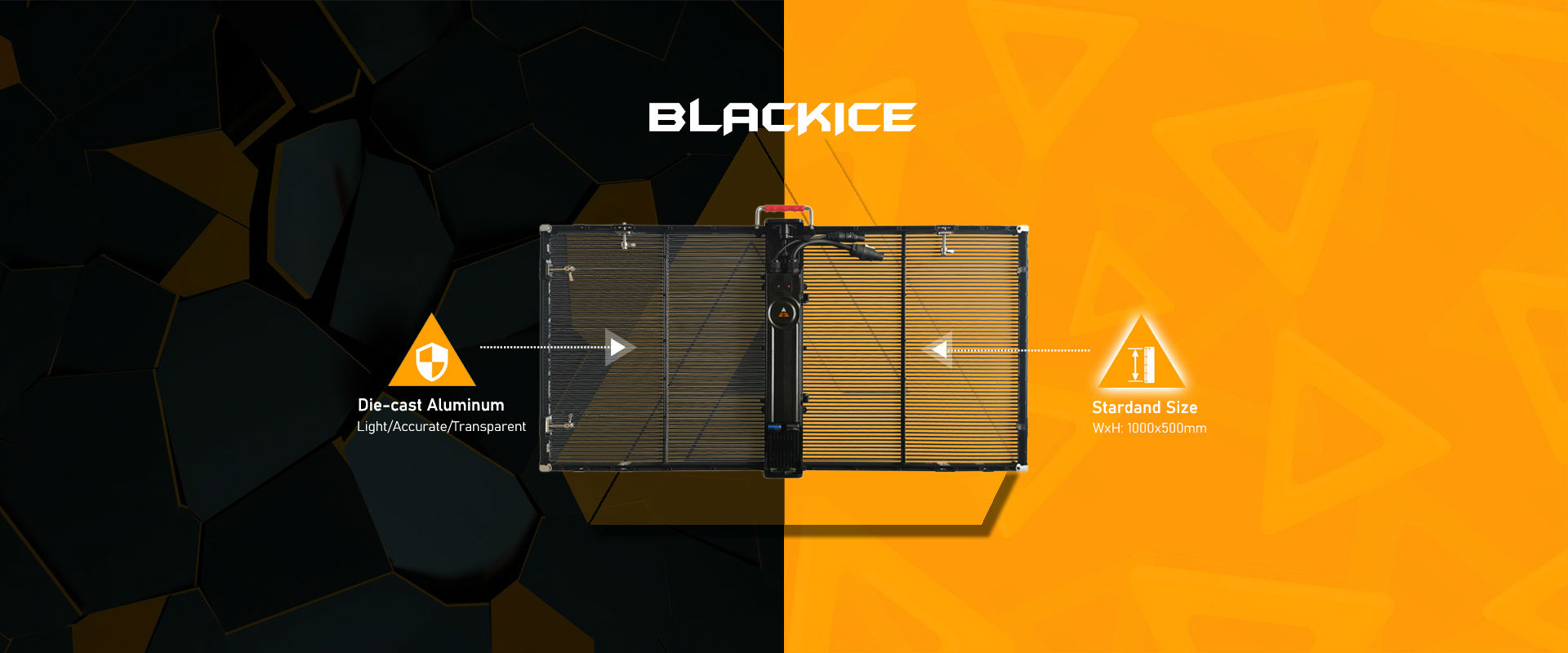

Panel Material

Die-cast/Profile Aluminium

Die-cast/Profile Aluminium

Die-cast/Profile Aluminium

Die-cast/Profile Aluminium

Operating Access

Front

Front

Front

Front
