Model | MI19 | MI26 | MI29 | MI39 | MI48 | MO29 | MO39 | MO48 | MO59 |
Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor | Outdoor |
Pixel Pitch | 1.953mm | 2.604mm | 2.976mm | 3.906mm | 4.807mm | 2.976mm | 3.906mm | 4.807mm | 5.952mm |
LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
Module Resolution | 128dots*128dots | 96dots*96dots | 84dots*84dots | 64dots*64dots | 52dots*52dots | 84dots*84dots | 64dots*64dots | 52dots*52dots | 42dots*42dots |
Panel Size | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
Panel Resolution | 256*256dots | 192*192dots | 168*168dots | 128*128dots | 104*104dots | 168*168dots | 128*128dots | 104*104dots | 84*84dots |
Panel Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
Pixel Density | 262,144dots/m² | 147,456dots/m² | 112,896dots/m² | 65,536dots/m² | 43,264dots/m² | 112,896dots/m² | 65,536dots/m² | 43,264dots/m² | 28,224dots/m² |
Scan Mode | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 | 1/14 or 1/21 | 1/16 or 1/8 | 1/13 or 1/7 | 1/7 |
Brightness | 800nits/1,200nits | 800nits/1,200nits | 800nits/1,200nits | 800nits/1,200nits | 800nits/1,200nits | 4,000nits/6,000nits | 4,000nits/6,000nits | 4,000nits/6,000nits | 4,000nits/6,000nits |
Refresh Rate | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz |
Gray Scale | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit |
Contrast Rate | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Max.Power Consumption | 560W/m² | 560W/m² | 560W/m² | 560W/m² | 560W/m² | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
Ave.Power Consumption | 160W/m² | 160W/m² | 160W/m² | 160W/m² | 160W/m² | 230W/m² | 230W/m² | 230W/m² | 230W/m² |
Power Input | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | |||||||
VIewing Angle | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° |
Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
Protection Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 | IP65 |

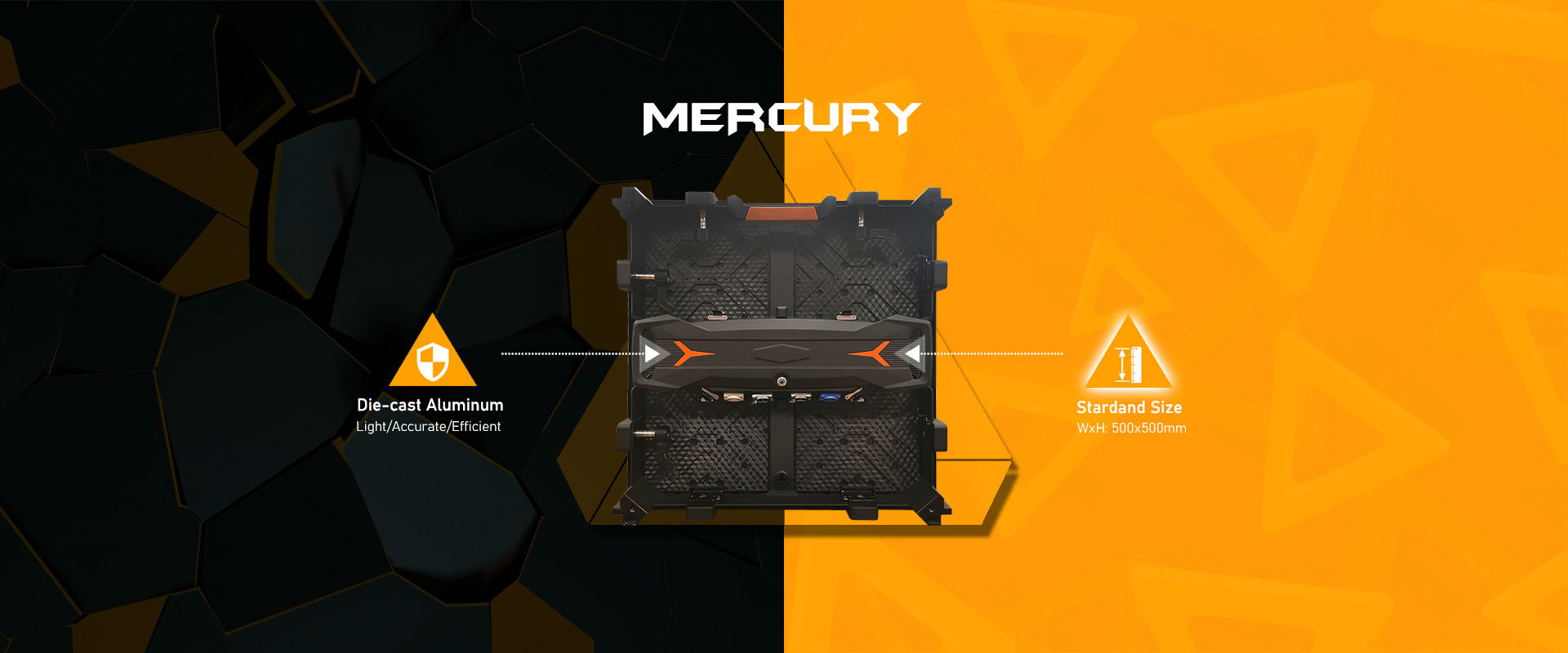

Panel Material | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium |

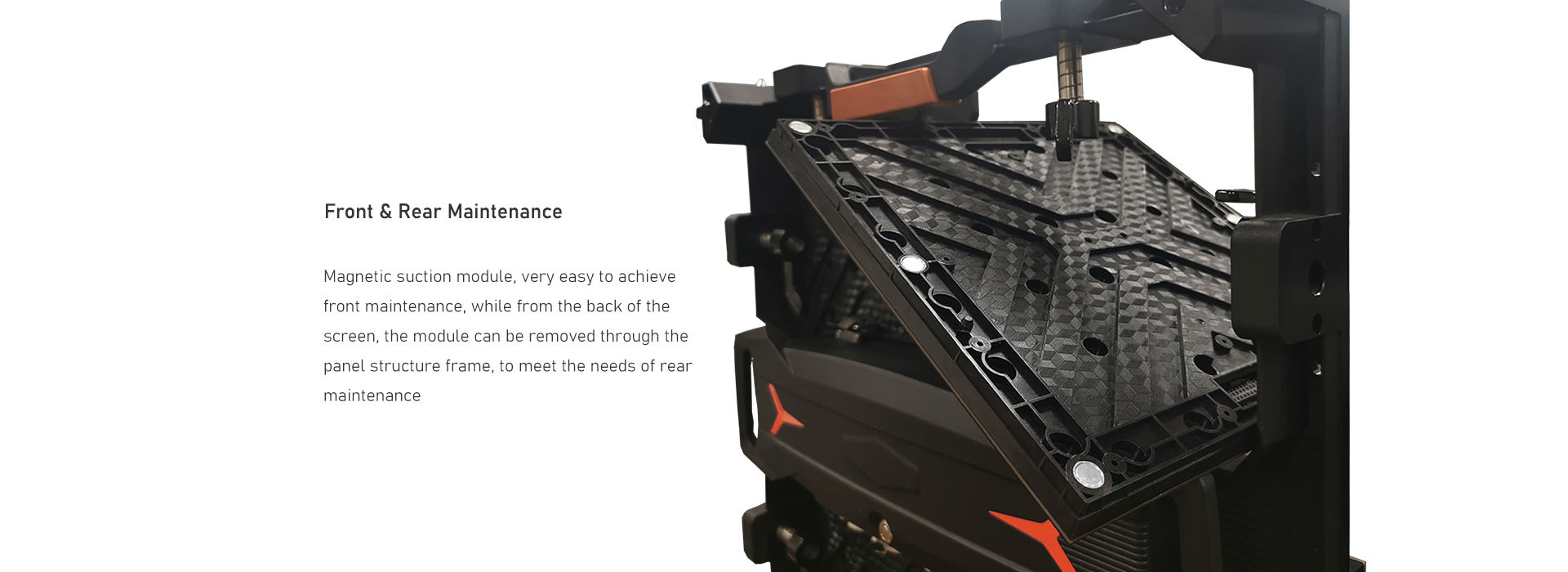

Operating Access | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear |
