Model | H10 | H12 | H15 | H20 | H7C | H10C | H15C |
Transparency Rate | 30% | 36% | 42% | 56% | 0% | 0% | 0% |
Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
Pixel Pitch | 10.416mm | 12.500mm | 15.625mm | 20.833mm | 7.812mm | 10.416mm | 15.625mm |
LED Type | SMD2727 | SMD2727 | DIP346 | DIP346 | SMD2727 | DIP346 | DIP346 |
Module Size | 1000mm*41.7mm | 1000mm*50.0mm | 1000mm*62.5mm | 1000mm*83.3mm | 1000mm*62.5mm | 1000mm*41.7mm | 1000mm*62.5mm |
Module Resolution | 96dots*4dots | 80dots*4dots | 64dots*4dots | 48dots*4dots | 128dots*8dots | 96dots*4dots | 64dots*4dots |
Panel Size | 1000*500*79mm | 1000*500*79mm | 1000*500*79mm | 1000*500*79mm | 1000*500*79mm | 1000*500*79mm | 1000*500*79mm |
Panel Resolution | 96*48dots | 80*40dots | 64*32dots | 48*24dots | 128*64dots | 96*48dots | 64*32dots |
Panel Weight | 8.9kg | 8.9kg | 8.9kg | 8.9kg | 8.9kg | 8.9kg | 8.9kg |
Pixel Density | 9,216dots/m² | 6,400dots/m² | 4,096dots/m² | 2,304dots/m² | 16,384dots/m² | 9,216dots/m² | 4,096dots/m² |
Scan Mode | 1/2 | Static | Static | Static | 1/4 | 1/4 | Static |
Brightness | ≥5,500~8,000nits | ≥6,000~8,000nits | ≥8,500~9,000nits | ≥6,500~7,000nits | ≥6,000nits | ≥8,500nits | ≥8,500nits |
Refresh Rate | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz | 1,920/3,840Hz |
Gray Scale | 14/16bit | 14/16bit | 14/16bit | 14/16bit | 14/16bit | 14/16bit | 14/16bit |
Contrast | / | / | / | / | 3500:1 | 3500:1 | 3500:1 |
Max. Power Consumption | 500W/m² | 500W/m² | 400W/m² | 400W/m² | 500W/m² | 400W/m² | 400W/m² |
Ave. Power Consumption | 180W/m² | 180W/m² | 150W/m² | 150W/m² | 180W/m² | 150W/m² | 150W/m² |
Power Input | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz |
VIewing Angle | H:140°/V:140° | H:140°/V:140° | H:120°/V:140° | H:120°/V:140° | H:140°/V:140° | H:120°/V:140° | H:120°/V:140° |
Operating Temperature | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ | ﹣30℃～65℃ |
Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
Protection Grade | F:IP67/R:IP65 | F:IP67/R:IP65 | F:IP67/R:IP65 | F:IP67/R:IP65 | F:IP67/R:IP65 | F:IP67/R:IP65 | F:IP67/R:IP65 |

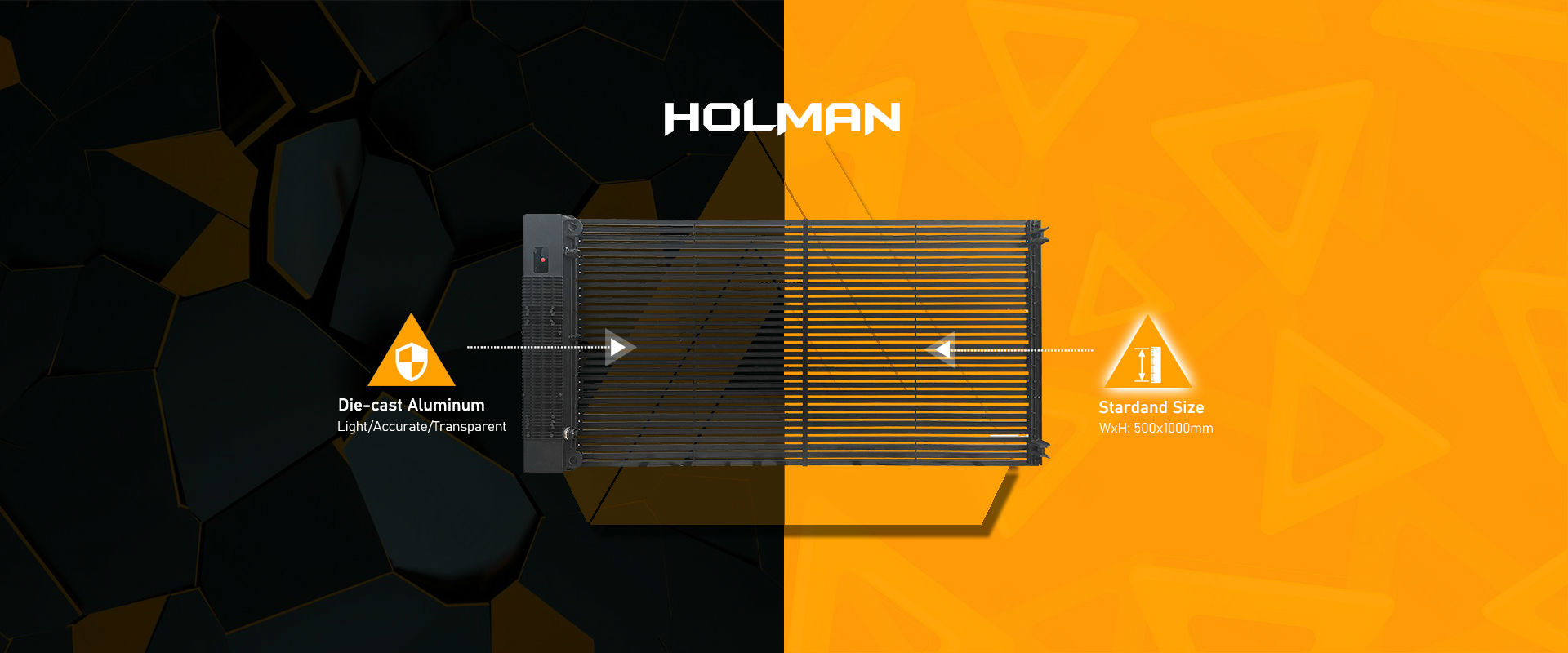

Panel Material | Die-cast Aluminum+PC | Die-cast Aluminum+PC | Die-cast Aluminum+PC | Die-cast Aluminum+PC | Die-cast Aluminum+PC | Die-cast Aluminum+PC | Die-cast Magnesium |

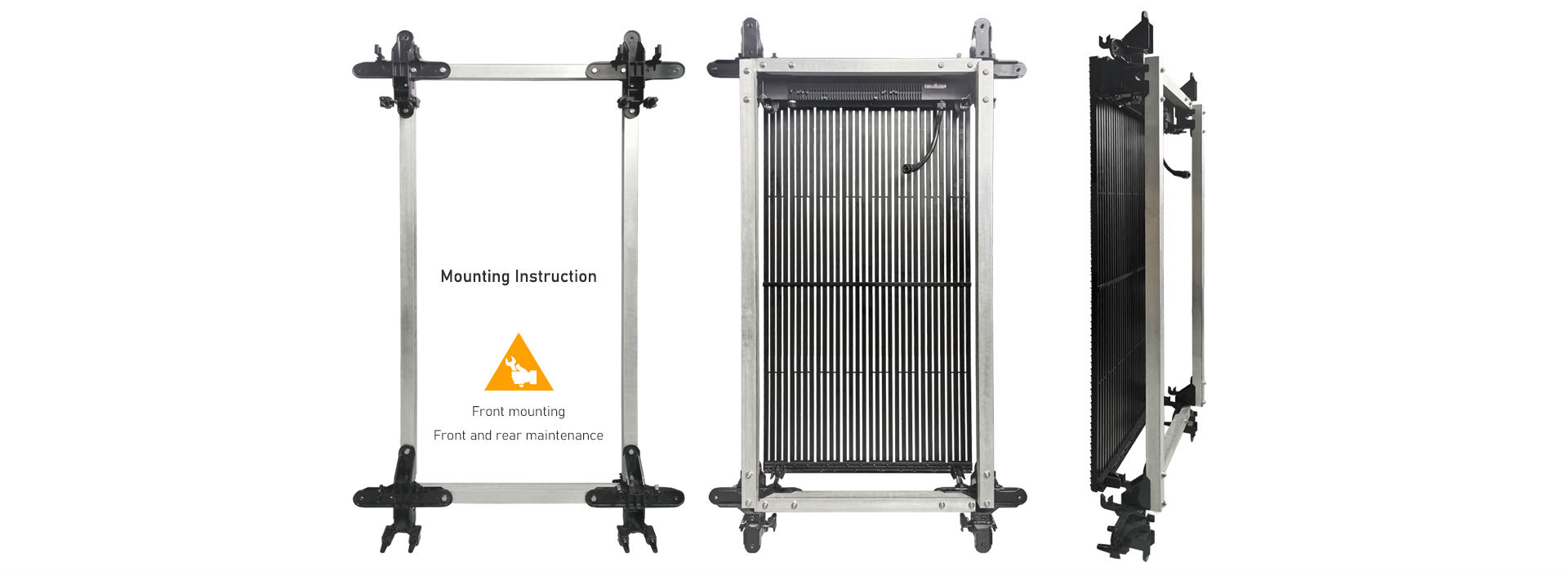

Operating Access | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
