Model | V19 | V25 | V29 | V39 | VO29 | VO39 | VO48 |
Operating Environment | Indoor | Indoor | Indoor | Indoor | Outdoor | Outdoor | Outdoor |
Pixel Pitch | 1.953mm | 2.500mm | 2.976mm | 3.906mm | 2.976mm | 3.906mm | 4.807mm |
LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1921 | SMD1921 |
Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
Module Resolution | 128dots*128dots | 100dots*100dots | 84dots*84dots | 64dots*64dots | 84dots*84dots | 64dots*64dots | 52dots*52dots |
Panel Size | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
Panel Resolution | 256*256dots | 200*200dots | 168*168dots | 128*128dots | 168*168dots | 128*128dots | 104*104dots |
Panel Weight | 6.8kg | 6.8kg | 6.8kg | 6.8kg | 7.2kg | 7.2kg | 7.2kg |
Pixel Density | 262,144dots/m² | 160,000dots/m² | 112,896dots/m² | 65,536dots/m² | 112,896dots/m² | 65,536dots/m² | 43,264dots/m² |
Scan Mode | 1/32 | 1/25 | 1/28 | 1/16 | 1/21 | 1/16 | 1/13 |
Brightness | 1,000nits | 1,000nits | 1,000nits | 1,000nits | 4,000nits | 4,000nits | 4,000nits |
Refresh Rate | >3,000Hz | >3,000Hz | >3,000Hz | >3,000Hz | >3,000Hz | >3,000Hz | >3,000Hz |
Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Contrast Rate | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Max. Power Consumption | 520W/m² | 520W/m² | 520W/m² | 520W/m² | 750W/m² | 750W/m² | 750W/m² |
Ave. Power Consumption | 140W/m² | 140W/m² | 140W/m² | 140W/m² | 220W/m² | 220W/m² | 220W/m² |
Power Input | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz |
VIewing Angle | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° |
Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
Protection Grade | IP43 | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 |
Panel Material | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium |

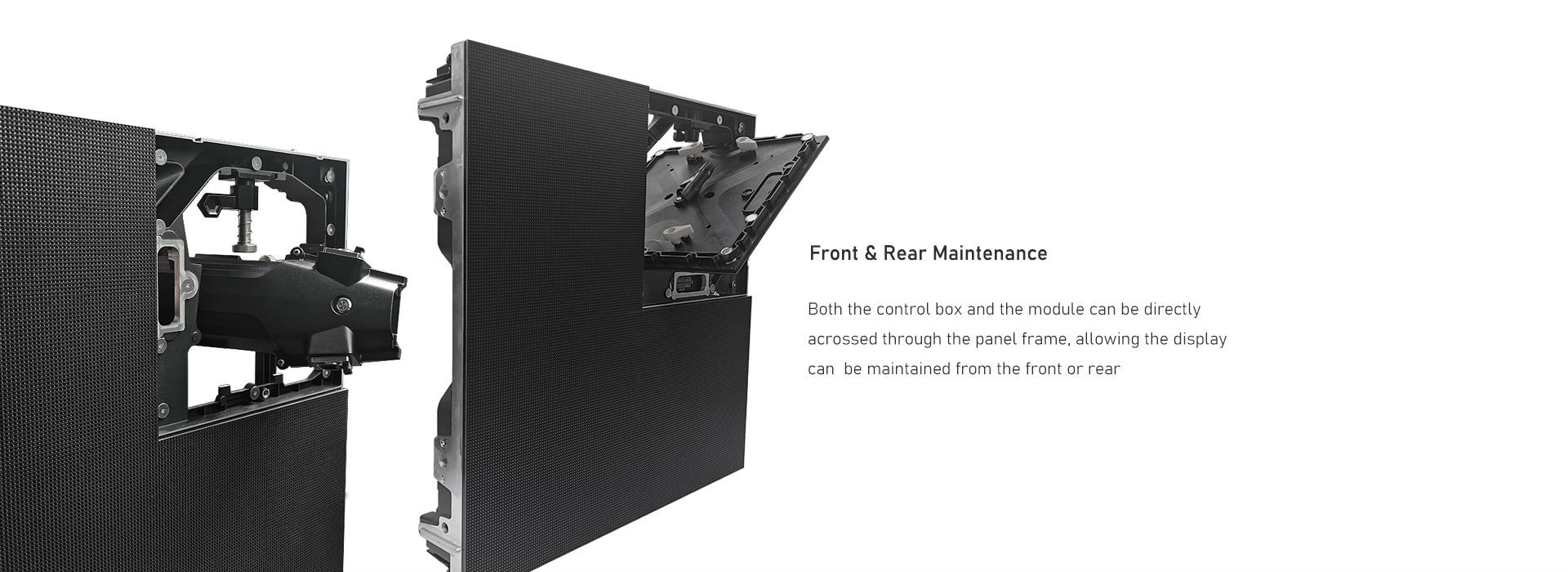

Operating Access | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear | Front&Rear |
