Model

C3

C5

C10

C15

Version

Standard

GOB

Standard

GOB

Standard

GOB

Standard

GOB

Operating Environment

Outdoor

Semi-outdoor

Outdoor

Semi-outdoor

Outdoor

Semi-outdoor

Outdoor

Semi-outdoor

Pixel Pitch

H:3.91mm/V:7.82mm

H:5.21mm/V:10.42mm

10.42mm

15.62mm

LED Type

SMD1921

SMD1921

SMD2727

SMD2727

Module Size

500mm*250mm

500mm*125mm

500mm*250mm

500mm*125mm

500mm*250mm

500mm*125mm

500mm*250mm

500mm*125mm

Module Resolution

128dots*32dots

128dots*16dots

48dots*48dots

48dots*24dots

48dots*24dots

48dots*12dots

32dots*16dots

32dots*8dots

Panel Size

1000mm*500mm

1000mm*500mm

1000mm*500mm

1000mm*500mm

Panel Resolution

256*64dots

96*96dots

96*48dots

64*32dots

Panel Weight

7.5kg

7.5kg

7.5kg

7.5kg

Pixel Density

32,768dots/m²

18,432dots/m²

9,216dots/m²

4,096dots/m²

Scan Mode

1/8

1/4

1/2

Static

Brightness

4,800nits

4,800nits

4,800nits

6,500nits

Refresh Rate

3,840Hz

3,840Hz

3,840Hz

3,840Hz

Gray Scale

14bit

14bit

14bit

14bit

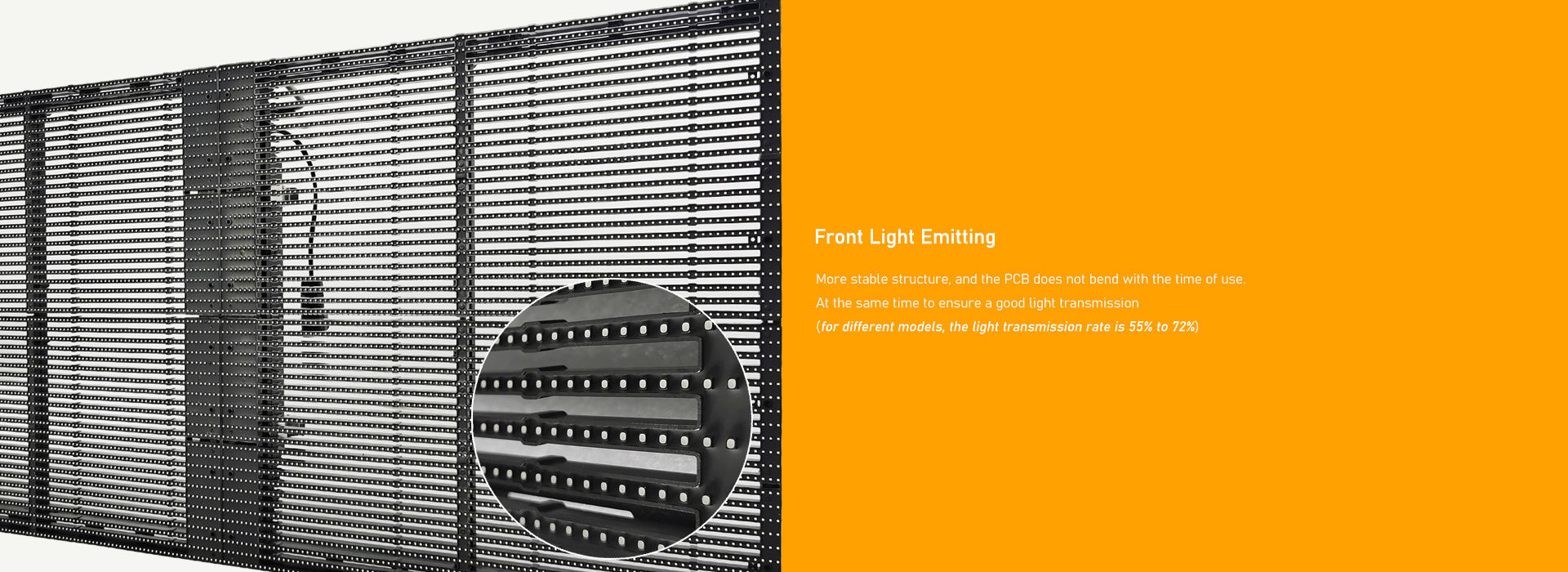

Transparency Rate

55%

58%

58%

72%

Max. Power Consumption

800W/m²

800W/m²

800W/m²

800W/m²

Ave. Power Consumption

260W/m²

260W/m²

260W/m²

260W/m²

Power Input

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

VIewing Angle

H:140°/V:140°

H:140°/V:140°

H:140°/V:140°

H:140°/V:140°

Operating Temperature

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

Operating Humidity

10%～90%

10%～90%

10%～90%

10%～90%

Protection Grade

IP65

IP30

IP65

IP30

IP65

IP30

IP65

IP30

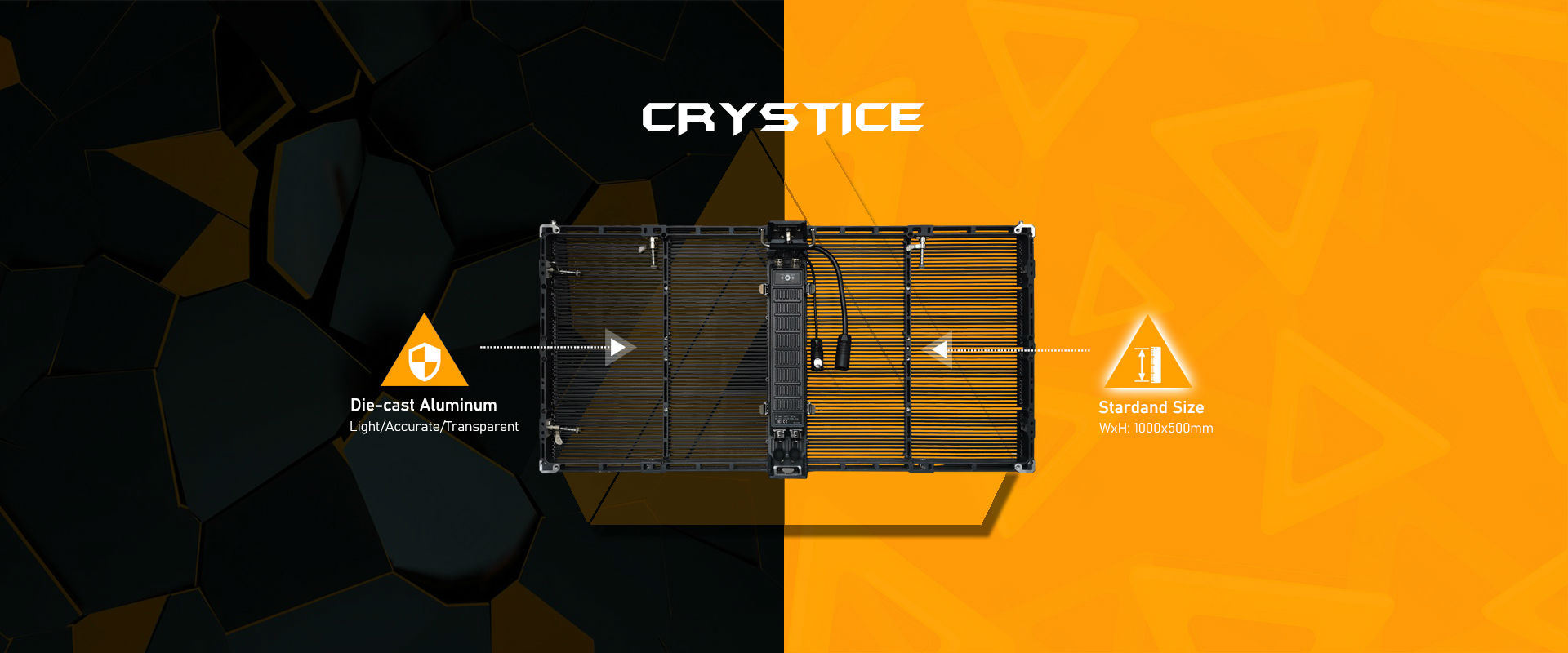

Panel Material

Die-cast Aluminium

Die-cast Aluminium

Die-cast Aluminium

Die-cast Aluminium

Operating Access

Rear

Front

Rear

Front

Rear

Front

Rear

Front
