Model | MT3 | MT4 | MT5 | MT6 |
Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor |
Pixel Pitch | 3.906mm | 4.807mm | 5.208mm | 6.25mm |
LED Type | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm |
Module Resolution | 64dots*64dots | 52dots*52dots | 48dots*46dots | 40dots*40dots |
Panel Size | 500mm*500mm | 500mm*500mm | 500mm*500mm | 500mm*500mm |
Panel Resolution | 128*128dots | 104*104dots | 96*96dots | 80*80dots |
Panel Weight | 12.25kg | 12.25kg | 12.25kg | 12.25kg |
Pixel Density | 65,536dots/m² | 43,264dots/m² | 36,864dots/m² | 25,600dots/m² |
Scan Mode | 1/12 | 1/13 | 1/12 | 1/10 |
Brightness | 3,500nits | 3,500nits | 3,500nits | 3,500nits |
Refresh Rate | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz |
Gray Scale | 14bit | 14bit | 14bit | 14bit |
Max. Power Consumption | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
Ave. Power Consumption | 350W/m² | 350W/m² | 350W/m² | 350W/m² |
Power Input | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz | AC110V-AC220V; 50Hz/60Hz |
VIewing Angle | H:120°/V:120° | H:120°/V:120° | H:120°/V:120° | H:120°/V:120° |
Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
Protection Grade | IP65 | IP65 | IP65 | IP65 |
Panel Material | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium |

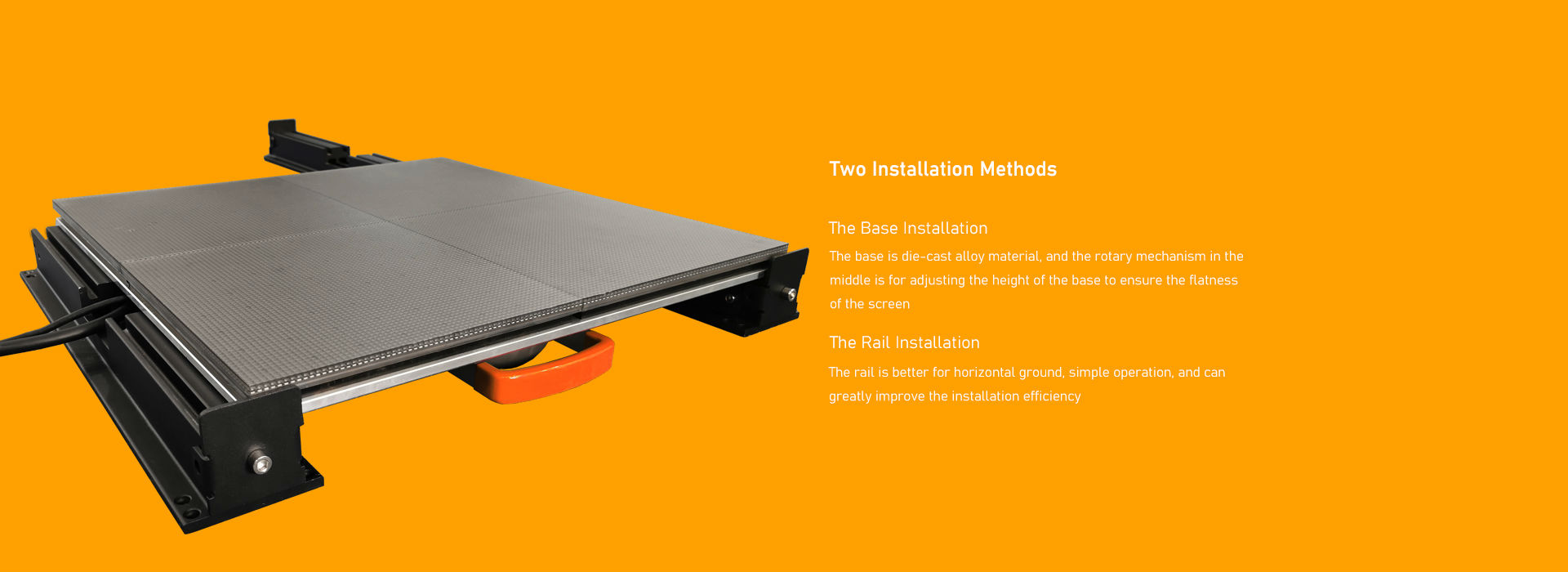

Installation Method | Base&Rail | Base&Rail | Base&Rail | Base&Rail |
