Model | F09 | F11 | F12 | F14 | F15 | F18 |
Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |

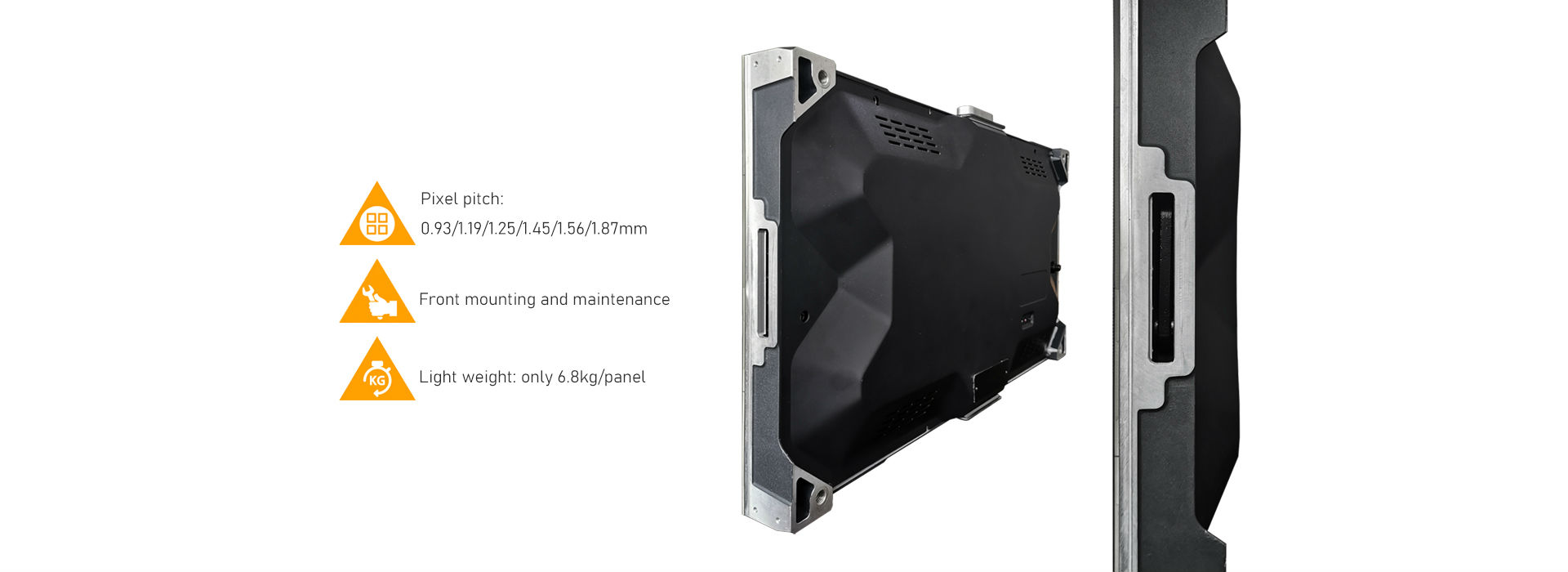

Pixel Pitch | 0.93mm | 1.19mm | 1.25mm | 1.45mm | 1.56mm | 1.87mm |
LED Type | SMD0606 | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD1515 |
Module Size | 200mm*168.75mm | 200mm*168.75mm | 200mm*168.75mm | 200mm*168.75mm | 200mm*168.75mm | 200mm*168.75mm |
Module Resolution | 214dots*180dots | 168dots*141dots | 160dots*135dots | 138dots*116dots | 128dots*108dots | 106dots*90dots |
Panel Size | 600.0mm*337.5mm*78mm | 600.0mm*337.5mm*78mm | 600.0mm*337.5mm*78mm | 600.0mm*337.5mm*78mm | 600.0mm*337.5mm*78mm | 600.0mm*337.5mm*78mm |
Panel Resolution | 642*360dots | 504*282dots | 480*270dots | 414*232dots | 384*216dots | 318*180dots |
Panel Weight | 6.8kg | 6.8kg | 6.8kg | 6.8kg | 6.8kg | 6.8kg |
Pixel Density | 1,152,000dots/m² | 706,844dots/m² | 640,000dots/m² | 476,100dots/m² | 409,600dots/m² | 284,444dots/m² |
Scan Mode | 1/30 | 1/30 | 1/27 | 1/29 | 1/27 | 1/30 |
Brightness | 650nits | 650nits | 650nits | 650nits | 650nits | 650nits |
Refresh Rate | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz | 1,920Hz/3,840Hz |
Gray Scale | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit | 14bit/16bit |
Contrast Rate | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
Max. Power Consumption | 890W/m² | 790W/m² | 740W/m² | 730W/m² | 715W/m² | 590W/m² |
Ave. Power Consumption | 445W/m² | 335W/m² | 295W/m² | 280W/m² | 270W/m² | 195W/m² |
Power Input | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz |
VIewing Angle | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° |
Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
Operating Humidity | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% | 10%～90% |
Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |

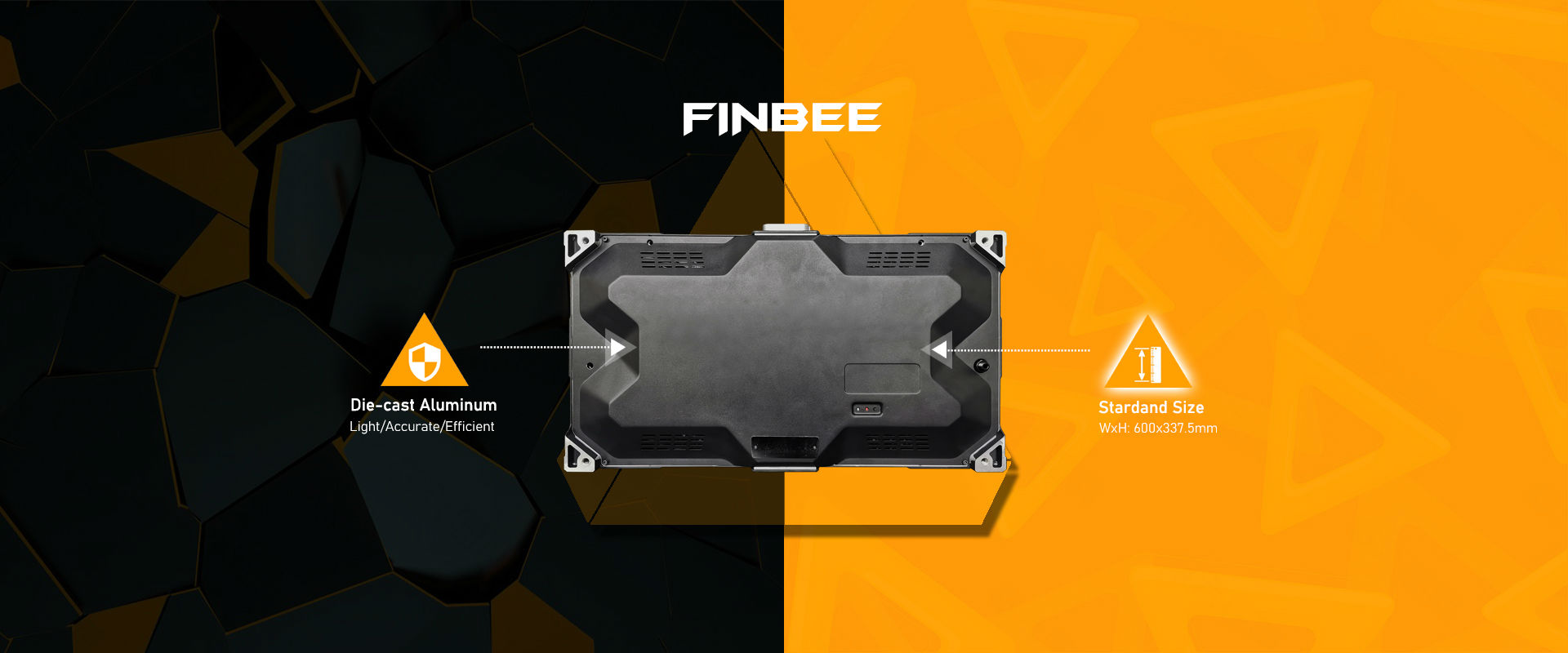

Panel Material | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium |
Operating Access | Front | Front | Front | Front | Front | Front |
