Model | PA120 | PA150 | PA180 |
Operating Environment | Indoor | Indoor | Indoor |

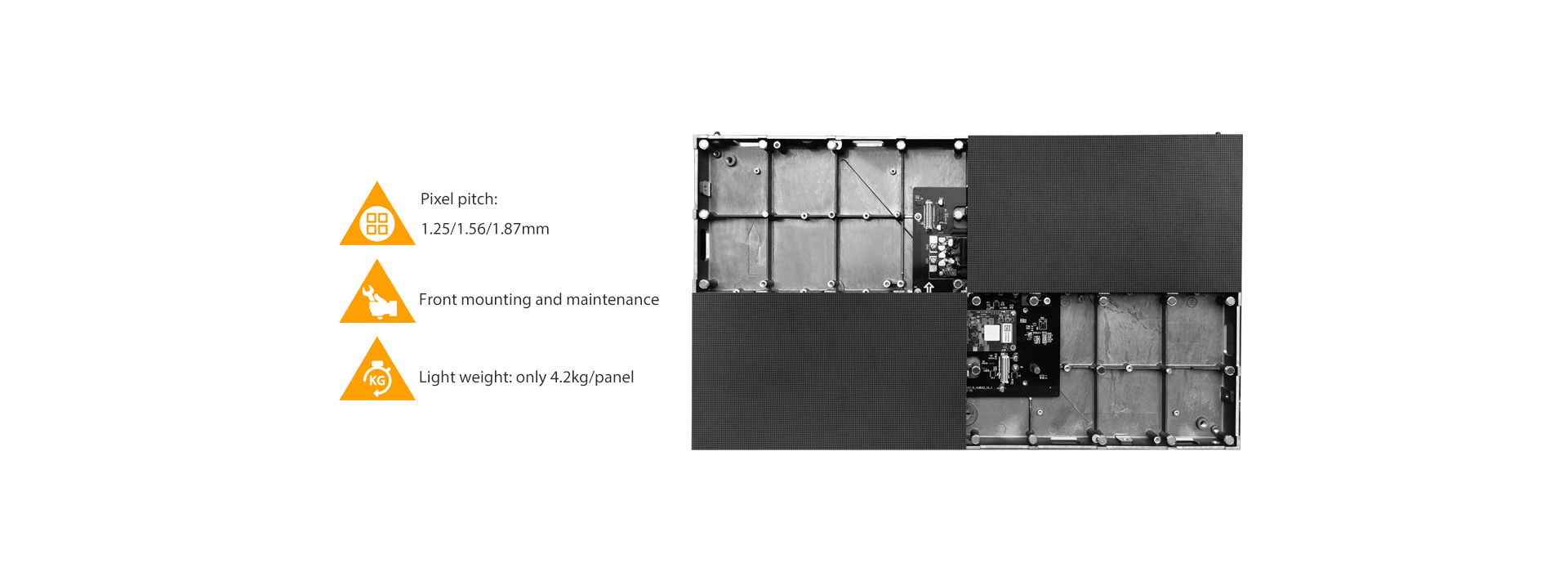

Pixel Pitch | 1.25mm | 1.56mm | 1.87mm |
LED Type | SMD1010 | SMD1212 | SMD1515 |
Module Size | 300mm*168.75mm | 300mm*168.75mm | 300mm*168.75mm |
Module Resolution | 240dots*135dots | 192dots*108dots | 160dots*90dots |
Panel Size | 600.0mm*337.5mm*32.0mm | 600.0mm*337.5mm*32.0mm | 600.0mm*337.5mm*32.0mm |
Panel Resolution | 480*270dots | 384*216dots | 318*180dots |
Panel Weight | 4.2kg | 4.2kg | 4.2kg |
Pixel Density | 640,000dots/m² | 409,600dots/m² | 284,444dots/m² |
Scan Mode | 1/64 | 1/32 | 1/32 |
Brightness | 650nits | 650nits | 650nits |
Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz |
Gray Scale | 14bit | 14bit | 14bit |
Contrast Rate | 5000:1 | 5000:1 | 5000:1 |
Max. Power Consumption | 480W/m² | 465W/m² | 420W/m² |
Ave. Power Consumption | 175W/m² | 170W/m² | 160W/m² |
Power Input | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz | AC90V-AC240V; 50Hz/60Hz |
VIewing Angle | H:160°/V:160° | H:160°/V:160° | H:160°/V:160° |
Operating Temperature | ﹣20℃～65℃ | ﹣20℃～65℃ | ﹣20℃～65℃ |
Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
Protection Grade | IP31 | IP31 | IP31 |

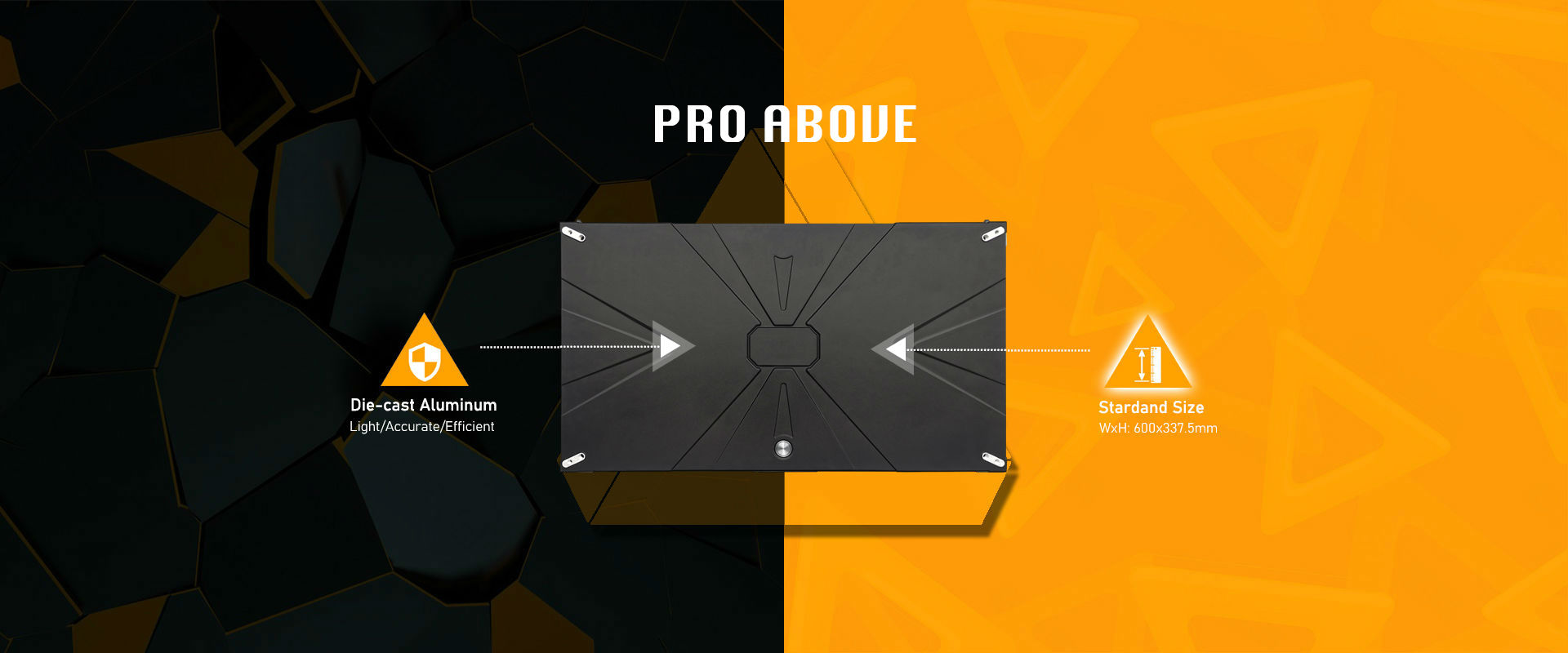

Panel Material | Die-cast Aluminium | Die-cast Aluminium | Die-cast Aluminium |

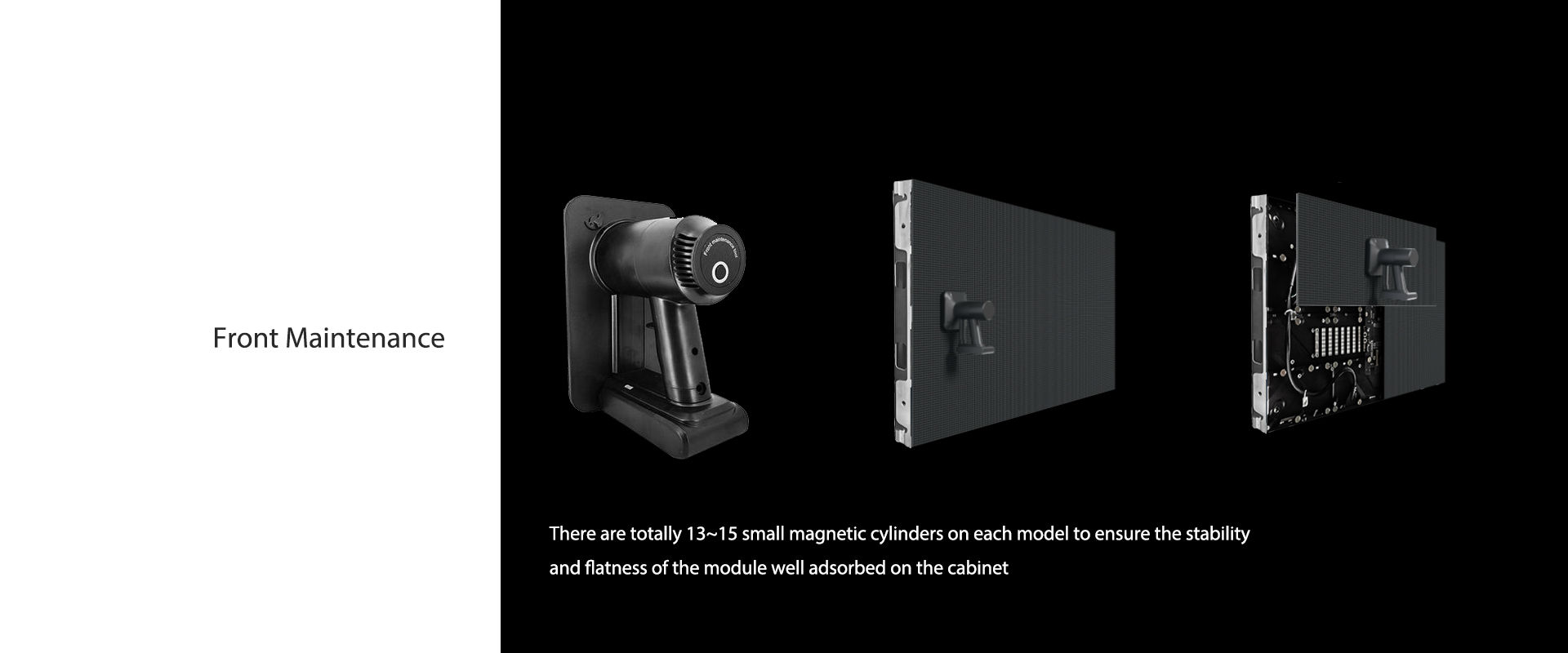

Operating Access | Front | Front | Front |
