Model

I12

I15

I16

I18

I25

Operating Environment

Indoor

Indoor

Indoor

Indoor

Indoor

Pixel Pitch

1.25mm

1.568mm

1.667mm

1.839mm

2.500mm

LED Type

SMD1010

SMD1212

SMD1212

SMD1515

SMD2121

Module Size

320mm*160mm

320mm*160mm

320mm*160mm

320mm*160mm

320mm*160mm

Module Resolution

256dots*128dots

204dots*102dots

192dots*96dots

174dots*87dots

128dots*64dots

Panel Size

640mm*480mm*75mm

640mm*480mm*75mm

640mm*480mm*75mm

640mm*480mm*75mm

640mm*480mm*75mm

Panel Resolution

512*384dots

408*306dots

384*288dots

348*261dots

256*192dots

Panel Weight

7.5kg

7.5kg

7.5kg

7.5kg

7.5kg

Pixel Density

640,000dots/m²

406,406dots/m²

360,000dots/m²

295,664dots/m²

160,000dots/m²

Scan Mode

1/32

1/27

1/28

1/29

1/23

Brightness

600nits

800nits

800nits

1000nits

1000nits

Refresh Rate

≥3,840Hz

≥3,840Hz

≥3,840Hz

≥3,840Hz

≥3,840Hz

Gray Scale

16bit

16bit

16bit

16bit

16bit

Contrast Rate

4000:1

4000:1

4000:1

4000:1

4000:1

Max. Power Consumption

600W/m²

600W/m²

600W/m²

600W/m²

600W/m²

Ave. Power Consumption

180W/m²

180W/m²

180W/m²

180W/m²

180W/m²

Power Input

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

AC90V-AC240V; 50Hz/60Hz

VIewing Angle

H:160°/V:160°

H:160°/V:160°

H:160°/V:160°

H:160°/V:160°

H:160°/V:160°

Operating Temperature

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

﹣20℃～65℃

Operating Humidity

10%～90%

10%～90%

10%～90%

10%～90%

10%～90%

Protection Grade

IP20

IP20

IP20

IP20

IP20

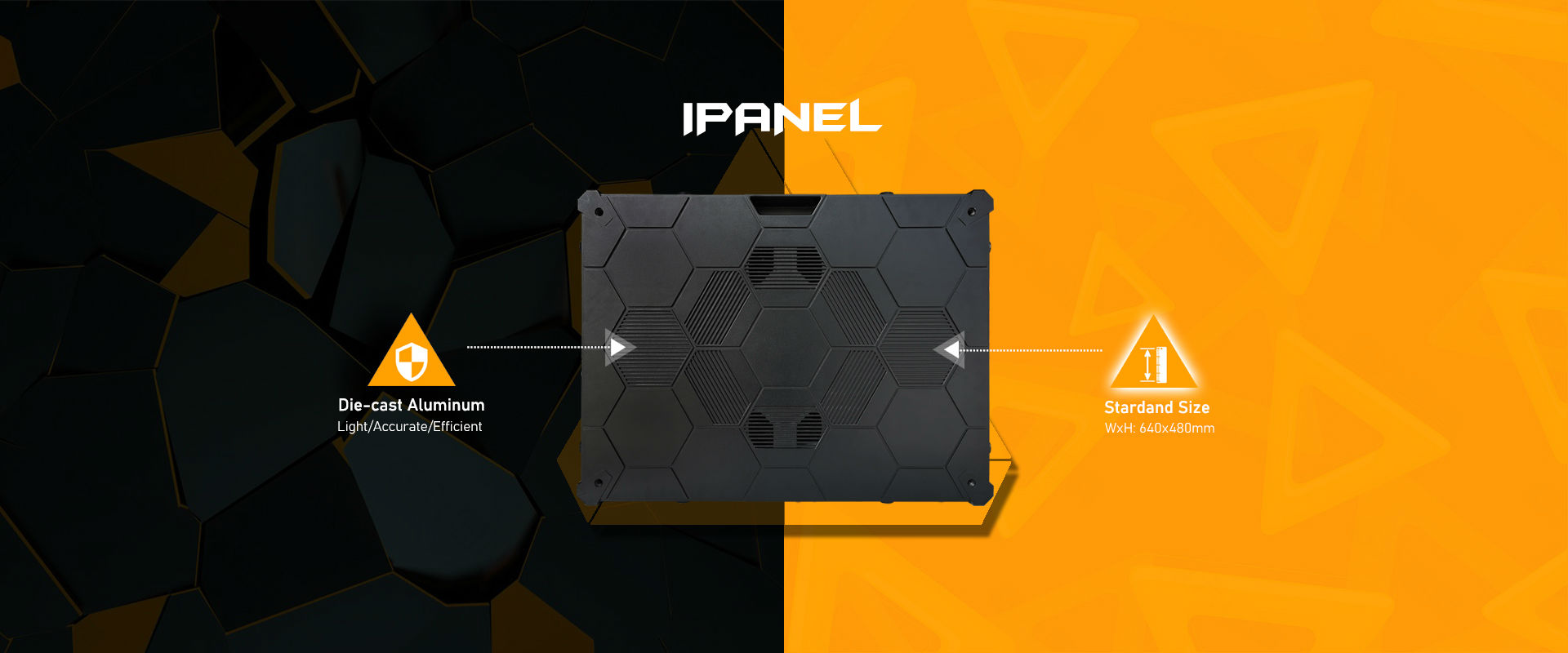

Panel Material

Die-cast Aluminium

Die-cast Aluminium

Die-cast Aluminium

Die-cast Aluminium

Die-cast Aluminium

Operating Access

Front

Front

Front

Front

Front
